APN Settings – The Ultimate Guide (everything to know)

Updated On:

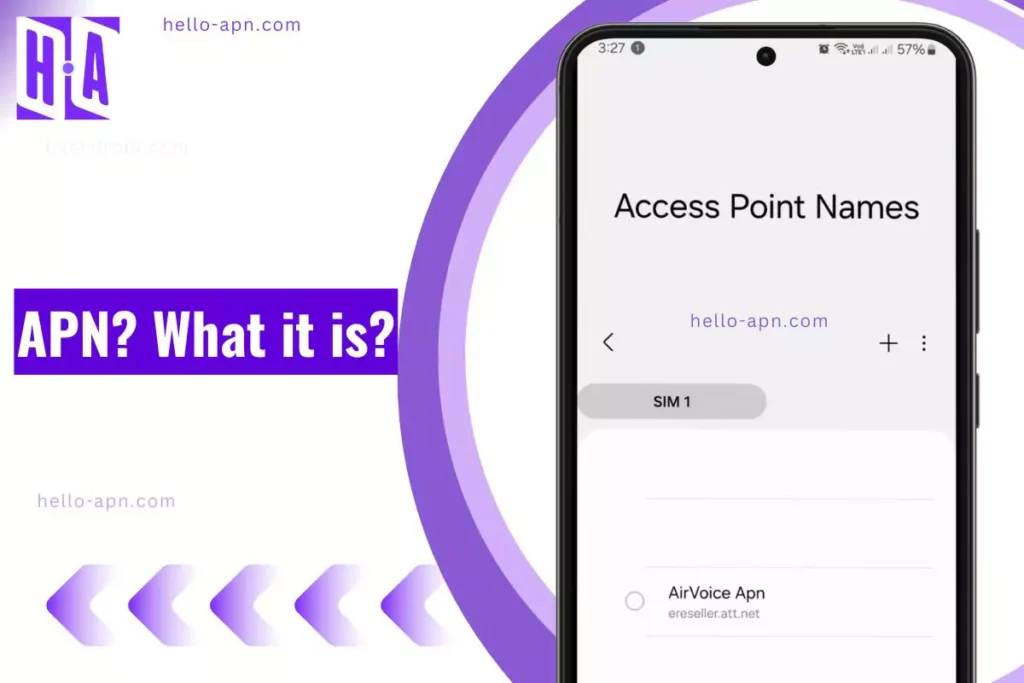

screenshot of the android access point names with overlay text what it is

APN stands for Access Point Name, a critical setting that allows a device to connect to the internet over a mobile network. It is a unique identifier that differentiates one mobile phone’s settings and network from another and provides a gateway to the internet. In simpler terms, the APN setting is a gateway between a mobile device and the internet.

Every mobile network provider has its unique APN, which is used to identify and authenticate devices on the network.

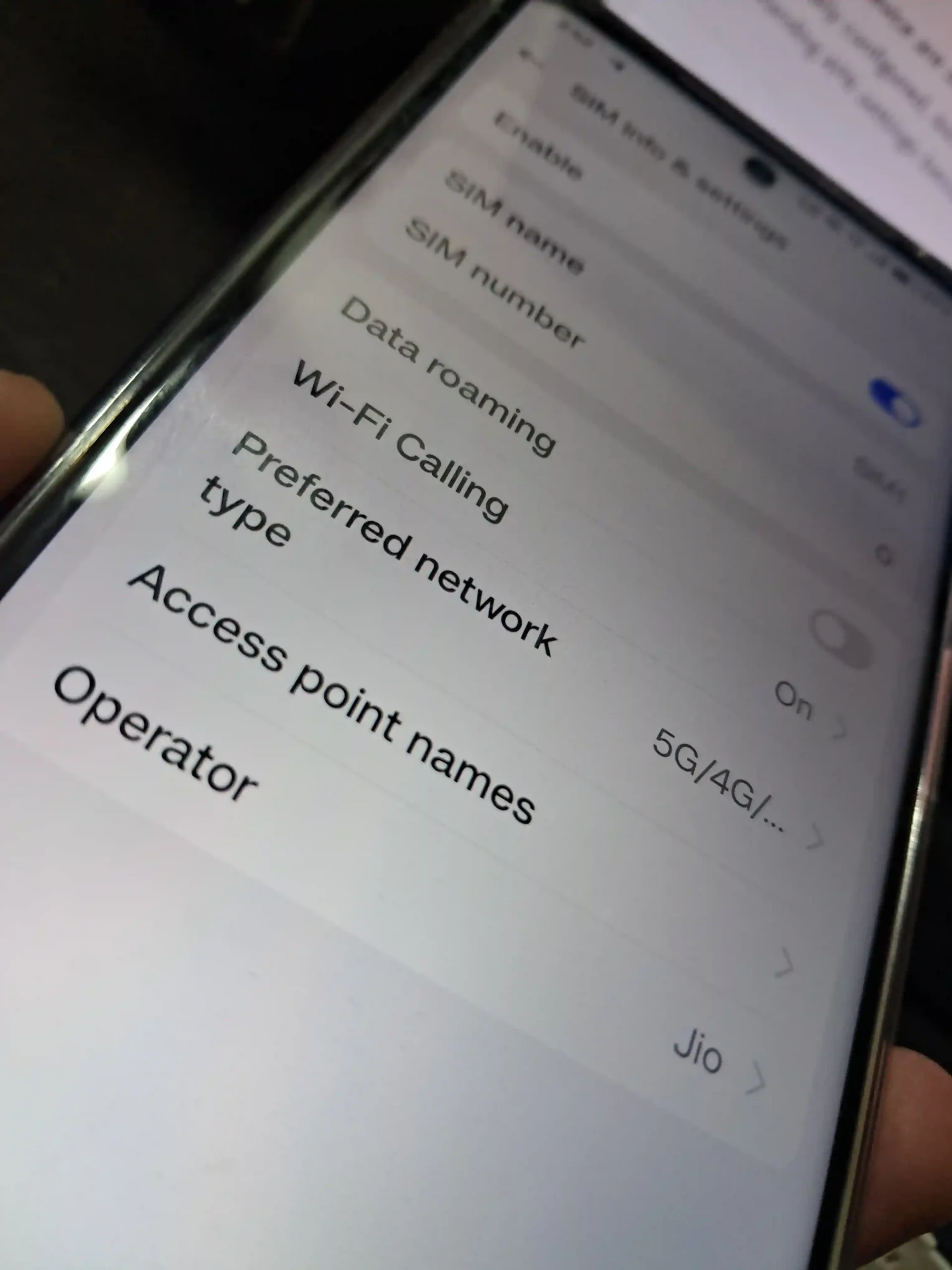

image of the phone tilted with access point names menu showing prominently

When a device tries to connect to the internet, it sends a request to the mobile network with its unique APN information. The mobile network operator then uses this information to route the device’s data traffic to the internet.

These settings on a device are often automatically configured when a SIM card is inserted. However, there are times when the settings need to be manually configured, such as when switching to a new carrier or when the default settings are not working correctly. This is where understanding APN settings become essential.

image of configuring the new apn on the android

What Is An APN?

APN stands for “Access Point Name”. It is a gateway between a mobile network carrier’s cellular network and the public internet.

The APN settings on a mobile device provide the necessary information to establish and maintain a connection to the carrier’s data network. Some key points about APNs:

  • An APN serves as the doorway to the carrier’s core network and out to the internet. It allows a mobile device to connect to data services.
  • The APN settings include the APN name, username, password, proxy and port if required, and other carrier-specific parameters. These are used to authenticate and connect to the carrier network.
  • APN settings are required to be configured properly on mobile devices to access data services like internet browsing, app downloads, streaming media, VOIP calls, etc via the mobile network.
  • Different APN settings may be required for different types of data connectivity e.g. internet, MMS, carrier billing services etc.
  • APN settings are provided by the mobile network carrier and are loaded onto the SIM card. Devices read these to establish data connectivity.

So in summary, the APN is a configuration that specifies how a device can access a carrier’s data network. Configuring the APN is essential for enabling mobile data connectivity.

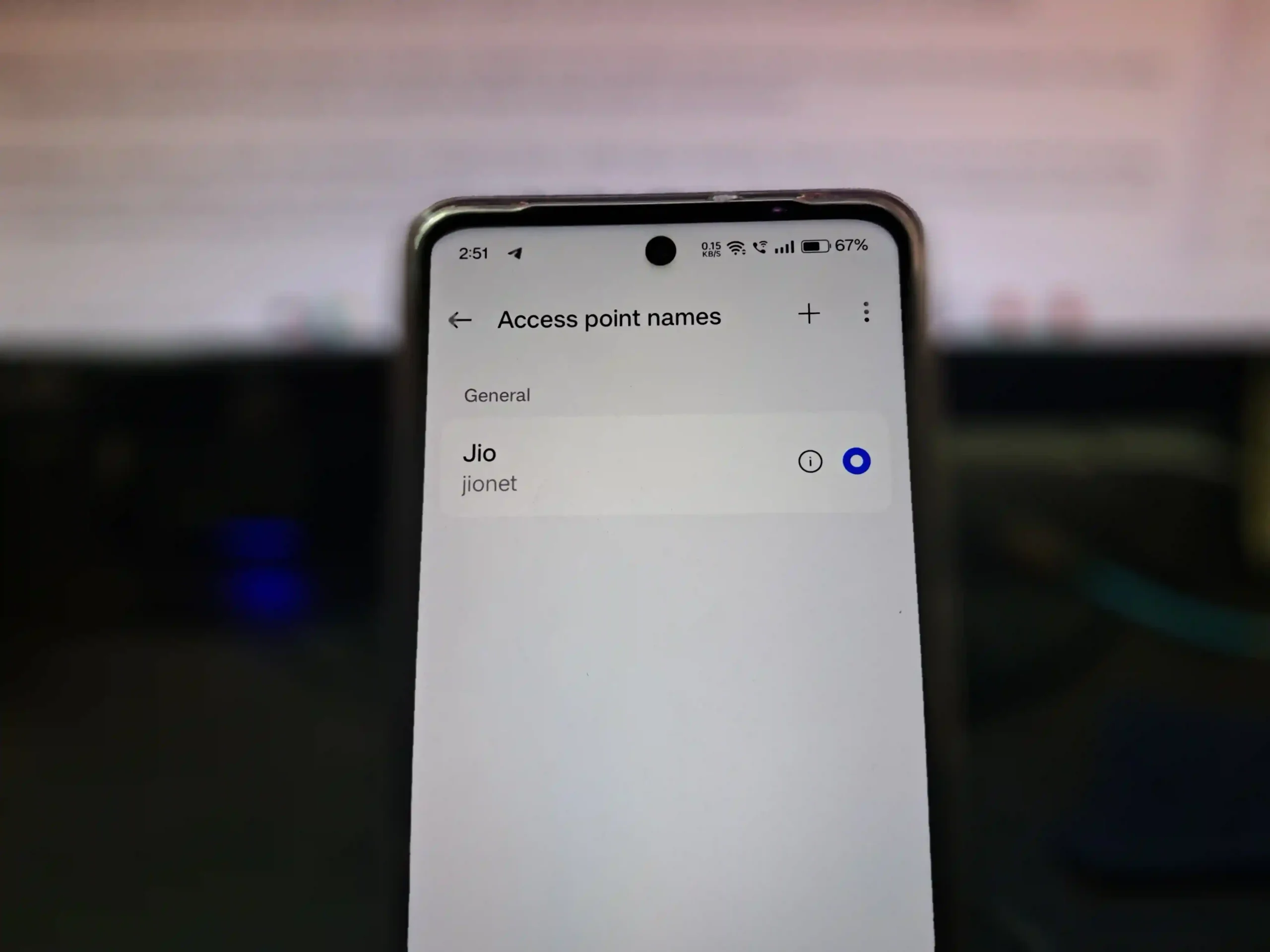

image of the android with access point names menu with only one apn configured

How It Works?

Imagine your phone as a student who wants to access the vast library of knowledge that is the internet. However, just like a student needs permission and proper credentials to enter a library, your phone needs a way to establish a connection with your mobile carrier’s network.

This is where the Access Point Name (APN) comes into play – it acts as a behind-the-scenes negotiator, facilitating communication between your phone and your cellular service provider. Think of the APN as a special set of instructions or a secret handshake that allows your device to connect to the internet using your carrier’s network seamlessly.

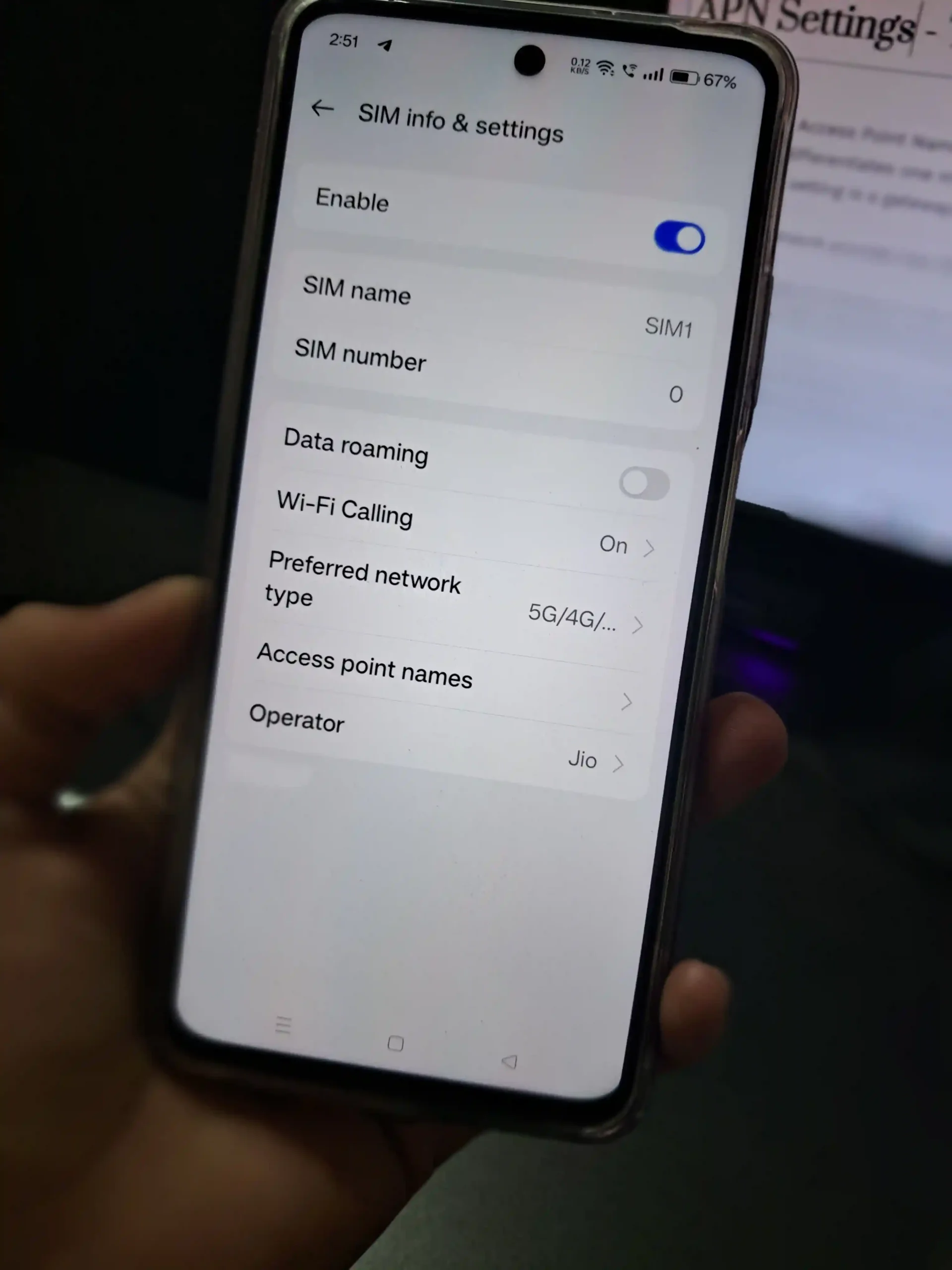

image of the android in hands with sim settings

Here’s a step-by-step breakdown of how this negotiation process works:

  1. Initiating the Connection Request When you try to use mobile data on your phone, it sends a connection request to your carrier’s network infrastructure, much like a student requesting access to the library.
  2. APN Identification Your phone then transmits the APN information set in its settings. This APN acts as an identifier, helping your network provider recognize your device and understand the type of connection you need, similar to a student presenting their library card or ID.
  3. Carrier Configuration Upon recognizing the APN, your carrier deciphers the instructions and sets up the appropriate connection for your device. Based on the APN, your carrier assigns:
    • IP Address: This unique address helps identify your phone on the network, much like a library assigning a specific study area or desk to a student.
    • Security Protocols: The APN can also indicate any security measures needed for the connection, ensuring a safe and secure browsing experience, just like a library implementing security measures to protect its resources.
    • Network Access Type: The APN can specify the kind of network access you’ll receive (e.g., internet, private network), similar to a library offering different access levels for various types of resources.
  4. Connection Established Once everything is set up according to the APN instructions, your phone can finally connect to the internet using your carrier’s cellular network, just like a student gaining access to the library’s resources after presenting the proper credentials.
  5. Not So Static: Public APNs typically assign dynamic IP addresses. This means your device might get a different IP address each time it connects, unlike a static IP which stays constant.

To provide a real-world example, let’s say you’re an Airtel subscriber. Your phone’s APN settings might include an entry like “airtelgprs.com” – this acts as the secret handshake, allowing your device to connect to Airtel’s network and access the internet seamlessly.

APN settings table with explanations

SettingExplanation
Name (APN)A user-chosen name to identify this APN configuration
APNAccess Point Name provided by carrier
Proxy / PortHTTP proxy server details (optional)
Username / PasswordAuthentication credentials (optional)
ServerWAP gateway server (usually blank)
MMSCMultimedia Message Service Center details
MMS Proxy / MMS PortHTTP proxy details for MMS only
MMS ProtocolProtocol for sending/receiving MMS (usually default)
MCC / MNCMobile Country & Network codes to identify carrier
Authentication TypeAuthentication method (usually not set)
APN TypeService type(s) to use this APN for
APN ProtocolIPv4, IPv6 or both (home vs roaming)
APN Enable/DisableChoose which general APN to enable
BearerExclude APN based on connection tech (LTE, etc)
MVNO Type/ValueRestrict APN to certain MVNOs
This table provides an overview of the various parameters that can be configured in an Access Point Name (APN) setup on a mobile device. The APN contains the settings required to establish a data connection via a carrier’s mobile network. While many of these settings are automatically provisioned, some may need to be manually entered depending on the device, OS, carrier and type of data service required. This table describes the purpose of each available APN parameter.

Some things to try if APN settings seem disabled:

  • Reset network settings
  • Try a different SIM card
  • Check if restrictions enabled
  • Contact carrier support
  • Perform factory reset (last resort)

APN Settings Includes

APN settings contain several fields: name, username, password, server, port, and protocol. The name field specifies the name of the APN, which is usually the name of the mobile network provider. The other fields are used to authenticate the device on the network and route its data traffic to the internet.

An APN consists of several different elements, including:

APN SETTINGS customizing
  1. Name: This is the name of the APN as defined by the mobile network operator.
  2. APN Type: This defines the type of data connection that is allowed, such as “default,” “mms,” or “supl.”
  3. Proxy: This is the IP address or URL of the proxy server used to connect to the internet.
  4. Port: This is the port number used by the proxy server.
  5. Username: This is the username required to access the network.
  6. Password: This is the password required to access the network.
  7. Authentication type: This is the type of authentication required, such as PAP (Password Authentication Protocol) or CHAP (Challenge-Handshake Authentication Protocol).
  8. MCC (Mobile Country Code) and MNC (Mobile Network Code): This three-digit code identifies the country where the device is used. and A two- or three-digit code identifying the specific mobile network operator.
  9. APN protocol defines the protocol used to connect to the internet, such as IPv4 or IPv6.
  10. APN roaming protocol defines the protocol used on another network, such as “same as APN protocol” or “IPv4.”
  11. Carrier: This is the mobile network operator providing the data connection.
  12. MVNO (Mobile Virtual Network Operator): This is the name of the virtual network operator, if applicable.

Each of these elements is essential for the proper functioning of an APN, and they can vary depending on the mobile network operator and the device being used. Understanding the components of an APN can help users troubleshoot connectivity issues and optimize their internet experience.

The APN settings determine the network protocols and configurations to establish a connection. APN settings can significantly impact internet speed and connectivity on new devices. If the settings are incorrect, the device may not be able to connect to the internet at all, or the connection may be slow and unstable.

Summary Of What APN Is

Understanding the essentials for ensuring optimal internet speed and connectivity and how much data is on mobile devices. In summary, APN is a critical setting that allows a device to connect to the internet over a mobile network. It is a unique identifier that differentiates one mobile network from another and provides a gateway to the internet.

additional apn options

APN stands for Access Point Name, a gateway between a mobile carrier’s cellular network and the internet. APN settings are required for a device to connect to a mobile network and access the internet.

Configure APN settings on a Android Smartphone

To configure APN settings on a smartphone, you can follow these steps:

Configure APN settings on a Android Smartphone
  1. Go to your device’s settings menu.
  2. Look for the “Mobile Network” or “Cellular Network” option and tap on it.
  3. Select “Access Point Names” or “APN” from the menu.
  4. Tap on the “+” icon or “Add” button to create a new APN.
  5. Enter the settings provided by your mobile network provider. You can find this information on their website or by contacting customer support.
  6. Save the settings and exit the settings menu.

Configure APN settings on a PC

Configure APN settings on a PC

For PCs, the process may differ depending on the operating system and network configuration. Here’s how to configure APN settings on Windows 10:

  1. Click on the “Start” menu and select “Settings.”
  2. Click on “Network & Internet.”
  3. Select “Cellular” from the left-hand menu.
  4. Click on “Advanced options” and then “Add an APN.”
  5. Enter the settings provided by your mobile network provider.
  6. Click “Save” to save the APN settings.

Configure APN settings on a Mac

apn settings menu for MAC

On Mac computers, you can follow these steps:

  1. Click on the Apple menu and select “System Preferences.”
  2. Click on “Network.”
  3. Select your cellular network connection from the list on the left-hand side.
  4. Click on the “Advanced” button.
  5. Select the “Proxies” tab and turn off all proxy options.
  6. Click on the “TCP/IP” tab and enter the Settings provided by your mobile network provider.
  7. Click “OK” to save the APN settings.

How APN Impact Network/Signal Strength

In my experience, the right APN settings don’t directly impact the strength of the network signal itself, but they do play a crucial role in how the device connects to the network. If the APN is misconfigured or incorrect, it can cause issues like slower data speeds or trouble connecting to certain parts of the network, which might make it feel like the signal is weak, even though it’s actually not.

mobile network and wifi connected

When my device connects to a mobile network, it uses the APN (Access Point Name) to establish an internet connection. If the APN settings are incorrect or don’t match the network requirements, the device may struggle to connect properly or may only connect to certain network types, such as older, slower networks, even if faster ones are available. For instance, using outdated APN settings might restrict my connection to 3G or lower speeds, even when 4G or 5G is accessible.

Benefits I’ve Noticed from Using Correct APN Settings

showing mobile signal strength with wifi
  • Improved Connectivity: When I use the correct APN, my device maintains a strong, consistent connection to the network, reducing dropped calls or interruptions in data usage. This consistency in connectivity boosts overall reliability, which is critical for staying online without disruptions.
  • Better Data Speeds: The right APN settings ensure that my device connects to the best available data speeds on the network. I’ve noticed faster downloads and smoother streaming when the APN matches the network’s configuration.
  • Enhanced Security: APN settings provide secure connections between mobile devices and networks. I can also configure my device with added security measures like encryption or VPNs through the APN, ensuring my data remains protected.
  • Remote Management: From an IT perspective, APNs allow remote device management, enabling monitoring and troubleshooting from a central location. This is particularly useful for businesses, where IT teams need to manage devices spread across different locations.
  • Cost Savings: APNs can be configured to prioritize Wi-Fi connections over cellular data, helping me save on mobile data usage. When I’m in range of a Wi-Fi network, my device automatically connects, reducing unnecessary data costs.
  • Improved Coverage: With the correct APN settings, I’ve experienced better network coverage and fewer dead zones, as my device is able to connect to the strongest available network in any given area.
  • Seamless Roaming: APNs support international roaming, ensuring that my device can connect to networks in other countries without causing high roaming fees. This feature is helpful for business trips or travel, where uninterrupted connectivity is important.
  • Customization: APN settings can be customized to meet specific business needs. For example, businesses can enable unique connectivity options or layer additional security features to protect sensitive data.
  • IoT and Cloud Integration: APN settings have allowed my IoT devices to stay connected for remote monitoring and management. Additionally, APNs facilitate access to cloud services, making it easier for me to collaborate or work remotely while staying connected to shared business tools.
  • Compliance and Visibility: I’ve seen APN configurations that ensure compliance with regulations like GDPR or HIPAA, helping businesses maintain necessary standards. Plus, they provide network visibility to monitor traffic and troubleshoot any issues more effectively.
benefits of using apn

Most People Don’t Need APN Settings

While it’s necessary to have the correct APN settings for your device to access mobile data, most people don’t need to configure their APN settings for the following reasons:

  1. Automatic Configuration: Modern smartphones usually configure the APN settings when a new SIM card is inserted or when the device is first set up. The device recognizes the carrier and applies the correct APN settings without requiring manual input from the user.
  2. Pre-Configured Devices: Many mobile devices sold by carriers come pre-configured with the correct APN settings for that carrier, which means users don’t have to worry about setting them up manually.
  3. Wi-Fi Availability: With the widespread availability of Wi-Fi networks, many people rely on mobile data less than they used to. If someone mainly uses their device on Wi-Fi, they don’t need to worry about APN settings.
  4. Data Packages: Most mobile carriers offer data packages with predefined data allowances that can be used without any manual configuration of the APN settings. Users can purchase the data package that fits their needs and start using mobile data without further setup.
  5. Carrier Updates: Carriers sometimes automatically push updates to devices’ network settings, including APN settings. Users don’t need to worry about these updates, as they will happen automatically in the background.

Most people don’t need to worry about changing settings; their devices are pre-configured or automatically set up to access mobile data. However, if someone is experiencing connectivity issues with mobile data, it may be necessary to manually check and configure the APN settings.

Why Do People Change Their APN Settings?

People may need to change their Access Point Name (APN) settings for various reasons, such as:

  1. Switching Carriers: When someone switches to a new carrier, they may need to change their APN settings to access mobile data on their network.
  2. Custom APN Settings: Some people may have custom APN settings that they need to set up manually to access specific services or features on their device, such as accessing a Virtual Private Network (VPN) or using a custom DNS.
  3. Network Issues: In some cases, users may experience connectivity issues with mobile data, such as slow speeds or dropped connections. Changing the APN settings can help resolve these issues.
  4. International Roaming: When someone travels to a different country, they may need to change their APN settings to use mobile data on a foreign carrier’s network. International roaming may require different APN settings, and it’s essential to ensure the correct settings are in place to avoid additional charges or connectivity issues.
  5. Device Compatibility: Some older or unlocked devices may not have the right APN settings pre-configured, and users may need to manually enter the settings to access mobile data.

People may change their APN settings for various reasons, including switching carriers, network issues, custom settings, international roaming, or device compatibility. Ensuring the right APN settings are in place to access mobile data services and avoid connectivity issues is essential.

Additional Resources

  1. “What are APN settings and how do I configure them?” by Android Central: This comprehensive guide explains what APN settings are and how to configure them on various Android devices. Link: https://www.androidcentral.com/what-are-apn-settings-and-how-do-i-configure-them-my-mobile-device
  2. “APN settings explained: What are they and how do they work?” by TechRadar: This article provides a clear overview of APN settings and how they work, with step-by-step instructions. Link: https://www.techradar.com/news/apn-settings-explained-what-are-they-and-how-do-they-work
  3. “How to Configure APN Settings on Android Phones” by MakeUseOf: This article offers a step-by-step guide to configuring APN settings on Android devices. Link: https://www.makeuseof.com/configure-apn-settings-android-phones/
  4. “What Is an APN, and How Do I Change It on My Android Phone?” by How-To Geek: This article provides a detailed explanation of APN settings and how to change them on Android devices. Link: https://www.howtogeek.com/290622/what-is-an-apn-and-how-do-i-change-it-on-my-android-phone/

Conclusion

In summary, while the correct APN settings do not directly change network strength, having the correct APN settings can ensure that a device can connect to and use a mobile network’s full capabilities, including its strongest signal and fastest data speeds.
