How IPv4 and IPv6 Impact APN and Internet Speed

In my experience working with mobile internet configurations, I’ve realized how much the choice between IPv4 and IPv6 affects not just APN settings but also the overall speed and reliability of internet connections. APN, or Access Point Name, acts as the bridge between your mobile device and your carrier’s network. However, the type of internet protocol your APN uses—either IPv4, IPv6, or both—plays a significant role in shaping your connection quality.

Quick Summary

Here’s a quick breakdown of the key points I’ll explore in this article:

• IPv4: Older, widely-used protocol with limited addresses and reliance on NAT (Network Address Translation).
• IPv6: Modern protocol with almost unlimited addresses, offering better speed and reliability in most scenarios.
• APNs: Determine the type of protocol your device uses and can impact speed based on configuration.
• Dual-stack configurations: Combine IPv4 and IPv6 for the best compatibility but add complexity.

By the end of this article, you’ll understand how these protocols influence your internet speed and how to optimize your APN settings for the best performance.

What Are IPv4 and IPv6?

IPv4: The Foundation of the Internet

When I first started exploring internet protocols, I realized how foundational IPv4 has been since its inception in the 1980s. IPv4 uses a 32-bit address system, meaning it can support about 4.3 billion unique addresses. While that seemed plenty at first, the explosion of internet-connected devices quickly led to address exhaustion. To deal with this, IPv4 relies heavily on NAT (Network Address Translation) to share one public IP address among multiple devices—but this comes at the cost of added latency and complexity.

IPv6: The Future of Connectivity

IPv6, on the other hand, was designed to solve IPv4’s limitations. With a 128-bit address structure, IPv6 provides a nearly infinite pool of unique IP addresses. For me, the most exciting part about IPv6 is its ability to bypass NAT, offering direct, end-to-end communication that reduces latency. Other features, like auto-configuration and built-in security protocols, make it a game-changer for modern networks.

How I Tested the Internet Speed For IPv4 and IPv6

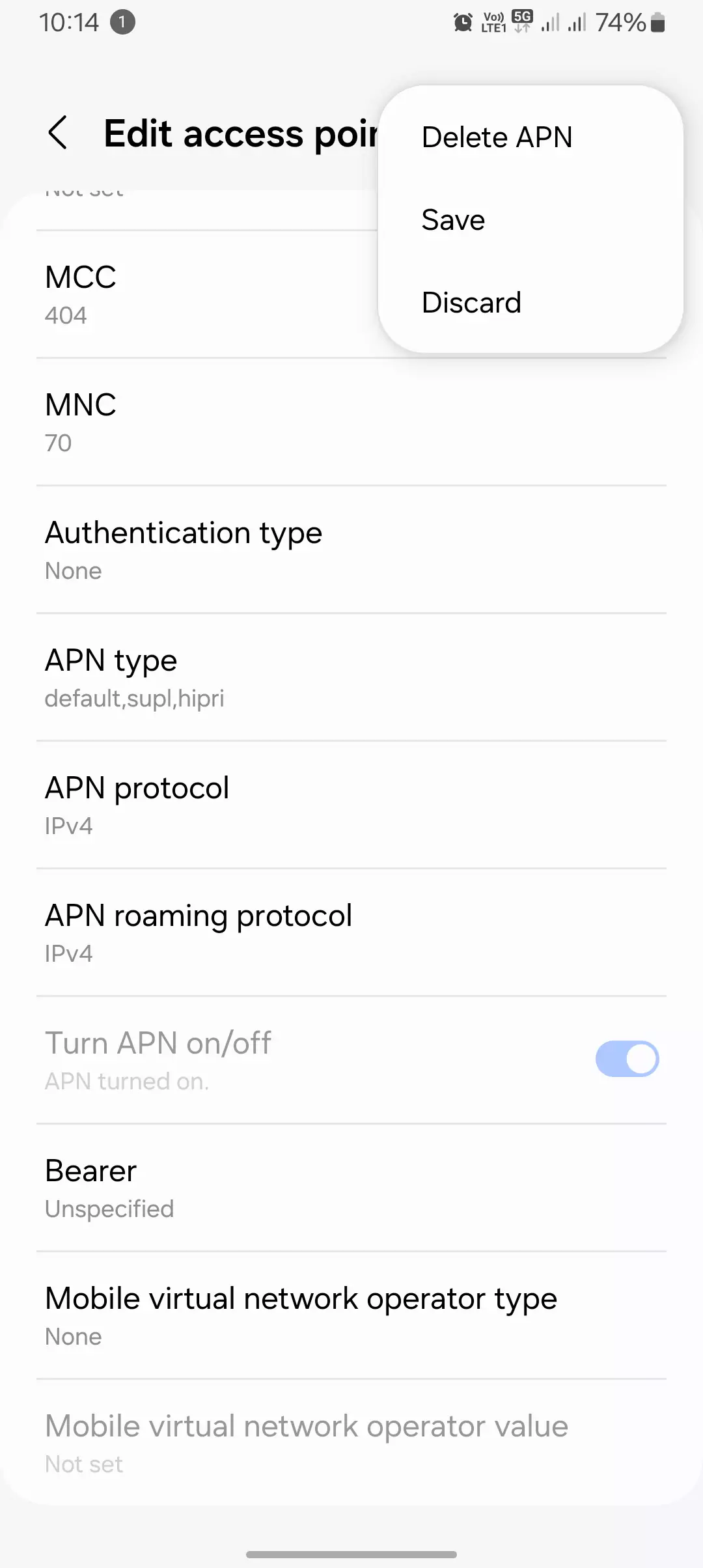

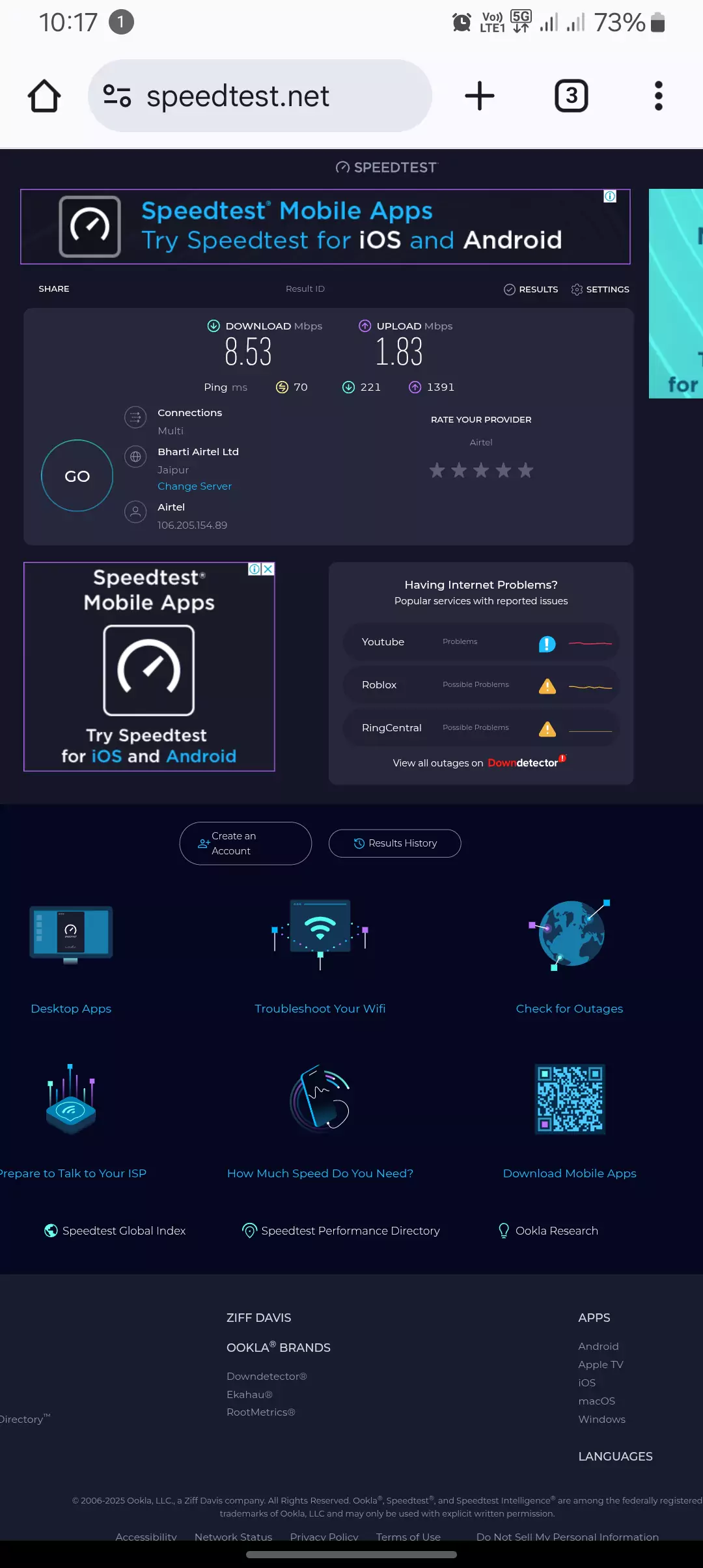

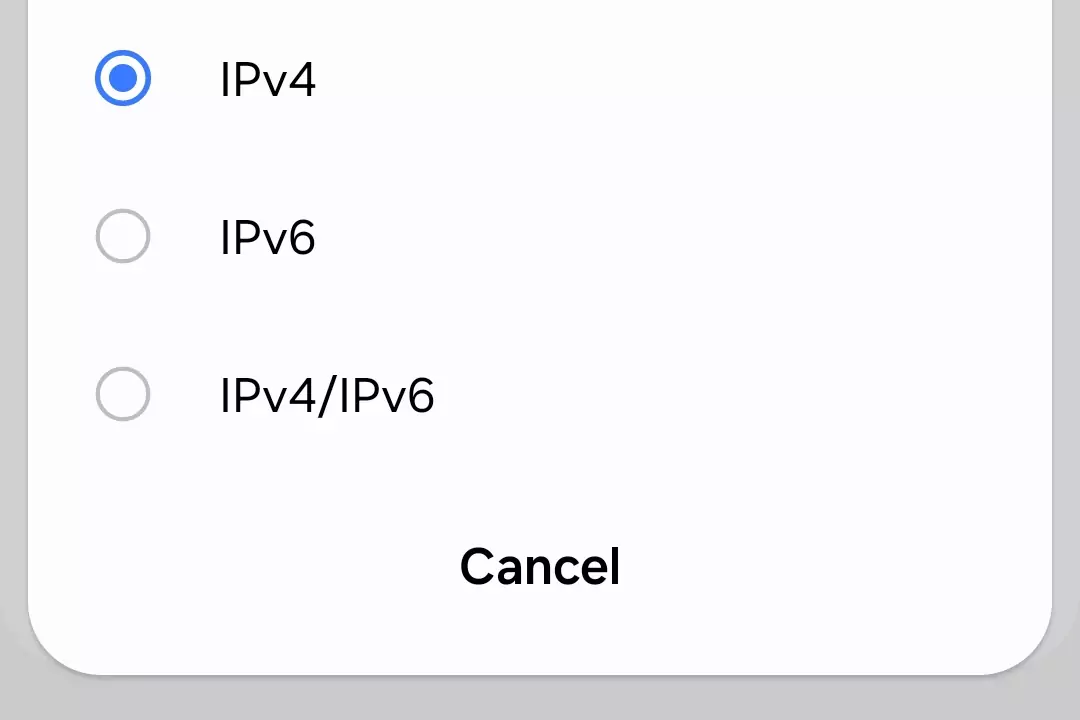

First, I switched my APN protocol and roaming protocol from IPv4/IPv6 to IPv4 only. As soon as I made the change, I ran a test on Speedtest.net, and it worked perfectly. The speeds were consistent, and the site loaded without any problems. My download speed was stable, and everything seemed smooth. This told me right away that IPv4-only settings are more reliable, at least in my case.

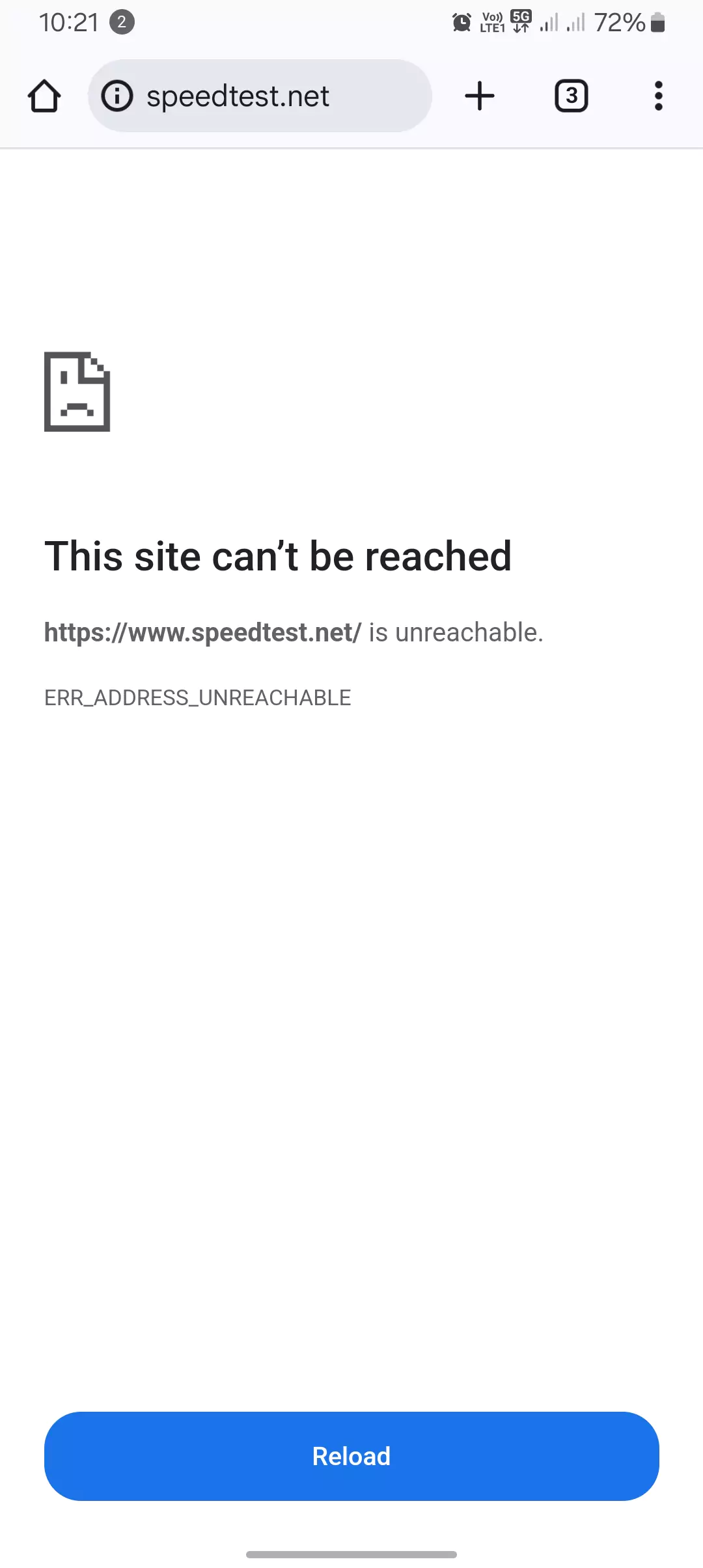

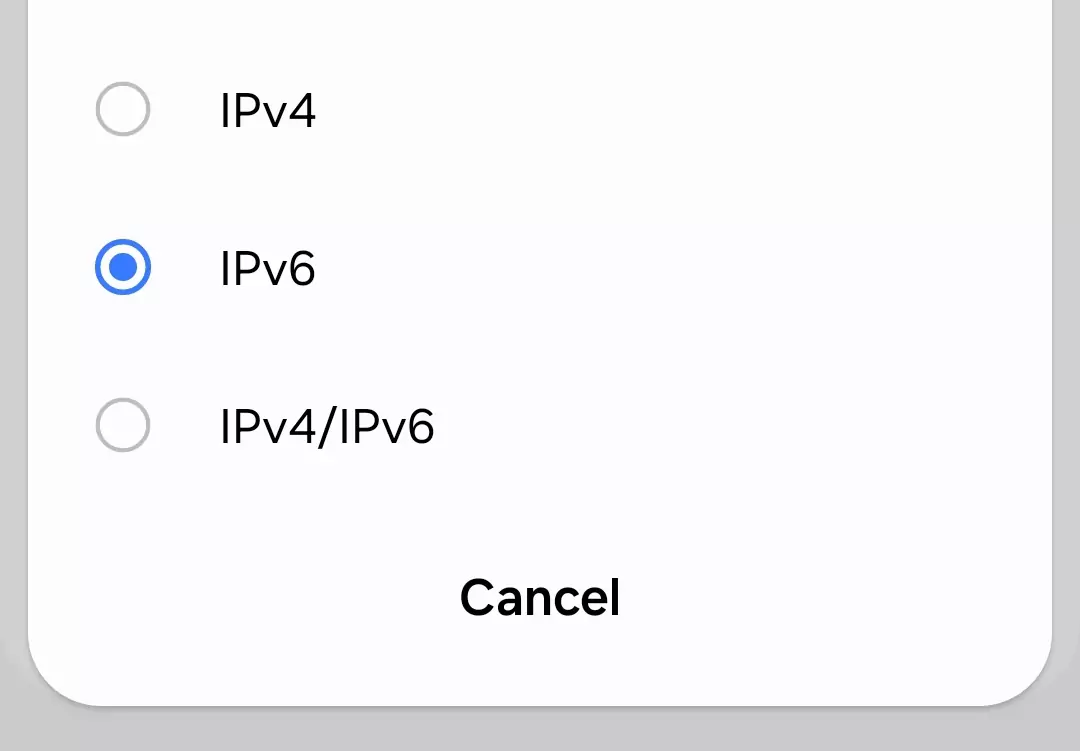

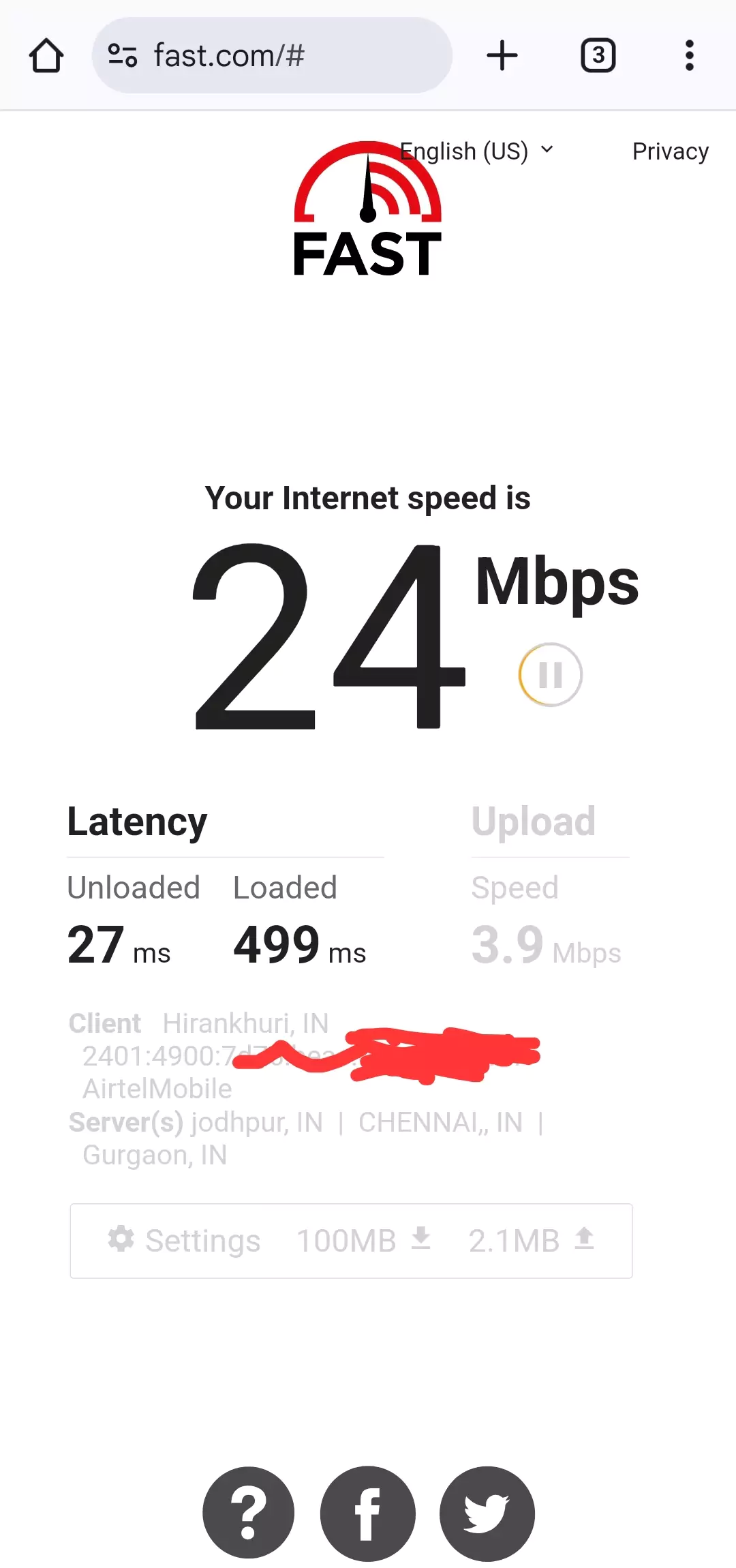

However, I wanted to dig deeper and see how IPv6 performed. So, I went back into the settings and switched both protocols to IPv6. That’s when the trouble began. Speedtest.net suddenly became unreachable, showing a “site can’t be reached” error. It was frustrating, but I didn’t stop there. I decided to use Fast.com instead to measure my internet speed. This worked, and I got around 24 Mbps download speed, but I couldn’t shake the feeling that IPv6 was less stable.

What I Learned About IPv4 vs. IPv6

Through these tests, I realized that IPv4 is much more stable for my mobile network. Websites like Speedtest.net load seamlessly, and I get consistent speeds without interruptions. On the other hand, IPv6 settings can cause compatibility issues, especially with certain websites. For me, the inability to access Speedtest.net while on IPv6 was a red flag.

What I Recommend You Do

If you’re facing similar issues, here’s what worked for me:

1. Stick to IPv4 for reliability: If you need consistent internet performance without glitches, set your APN protocol and roaming protocol to IPv4 only. It’s a tried-and-tested solution that works well for most networks.
2. Test IPv6 if you’re curious: While IPv6 has its advantages, like supporting more devices and being future-proof, it’s not always reliable. I recommend testing it out, but if you face issues like I did, switch back to IPv4.
3. Try dual-stack (IPv4/IPv6): Some networks support a dual-stack setup, allowing both IPv4 and IPv6 to coexist. This could be the best of both worlds, but in my experience, IPv4-only was still more consistent.
4. Check your carrier’s IPv6 support: I’m using Airtel (based on the speed test results), and there might be limitations or DNS issues with their IPv6 implementation. If you’re seeing similar problems, it might be worth reaching out to your carrier for clarity.
5. Manually adjust DNS settings: If you’re determined to use IPv6, you could try configuring custom DNS servers. For example, Google Public DNS offers IPv6 addresses:
   • 2001:4860:4860::8888
   • 2001:4860:4860::8844

My Final Takeaway

After running these tests, I’ve decided to stick with IPv4-only settings for now. They’re more consistent, and I don’t have to deal with frustrating errors like the one I saw with Speedtest.net. If you’re looking for smooth internet connectivity and reliable performance, I’d say IPv4 is the way to go—at least until IPv6 support becomes more robust.

The Relationship Between APN and Internet Protocols

APNs are essentially the settings that tell your device how to connect to your carrier’s network. In my testing, I’ve noticed that the choice of IPv4, IPv6, or a dual-stack configuration within APN settings has a direct impact on performance. Here’s what I’ve found:

• IPv4-only APNs: Work well with legacy devices but struggle with modern internet traffic demands.
• IPv6-only APNs: Offer faster, more reliable connections but might face compatibility issues with older networks or apps.
• Dual-stack APNs: Provide the best of both worlds but require careful setup to avoid conflicts.

Compatibility is another critical factor. For instance, if your carrier supports IPv6 but your device is configured for IPv4, you might experience slower speeds or even connectivity issues.

How IPv4 Impacts APN and Internet Speed

IPv4 has been the backbone of the internet for decades, but its limitations are evident in modern mobile networks. For example, NAT creates additional routing steps, which can increase latency and slow down your connection. During one of my tests, I noticed that IPv4-only APN settings struggled to handle video streaming during peak hours, as NAT couldn’t efficiently manage the high volume of traffic.

Key Challenges with IPv4

• Latency: Caused by the need for NAT and additional routing.
• Scalability issues: IPv4 simply can’t support the growing number of internet-connected devices.
• Performance bottlenecks: Especially noticeable in high-demand applications like gaming or video calls.

How IPv6 Impacts APN and Internet Speed

Switching to IPv6 often felt like upgrading to a smoother, faster highway. With direct routing and no NAT, IPv6 significantly reduces latency and improves speed. I’ve personally observed faster app launches and more stable video streams on IPv6-enabled networks.

Advantages of IPv6

• Lower latency: No NAT means faster data transmission.
• Better reliability: Especially in crowded networks.
• Future-proof: Ideal for IoT and smart devices that require numerous IP addresses.

However, IPv6 adoption isn’t without its challenges. Some older devices or apps might not fully support IPv6, leading to compatibility issues.

Dual-Stack APN Configurations: The Best of Both Worlds?

For those of us who value compatibility and performance, dual-stack configurations—which use both IPv4 and IPv6—offer a balanced solution. I’ve experimented with this setup on multiple networks and found it to work seamlessly in most cases. However, it does come with added complexity in APN settings, and there’s a slight chance of speed trade-offs due to protocol switching.

Benefits

• Seamless connectivity across IPv4 and IPv6 networks.
• Reduces the risk of compatibility issues.

Drawbacks

• Slightly more complicated to configure.
• Potential for minor latency during protocol transitions.

IPv4 vs. IPv6: Which is Better for Internet Speed?

From my experience, the answer depends on your specific use case. Here’s how I’d compare them:

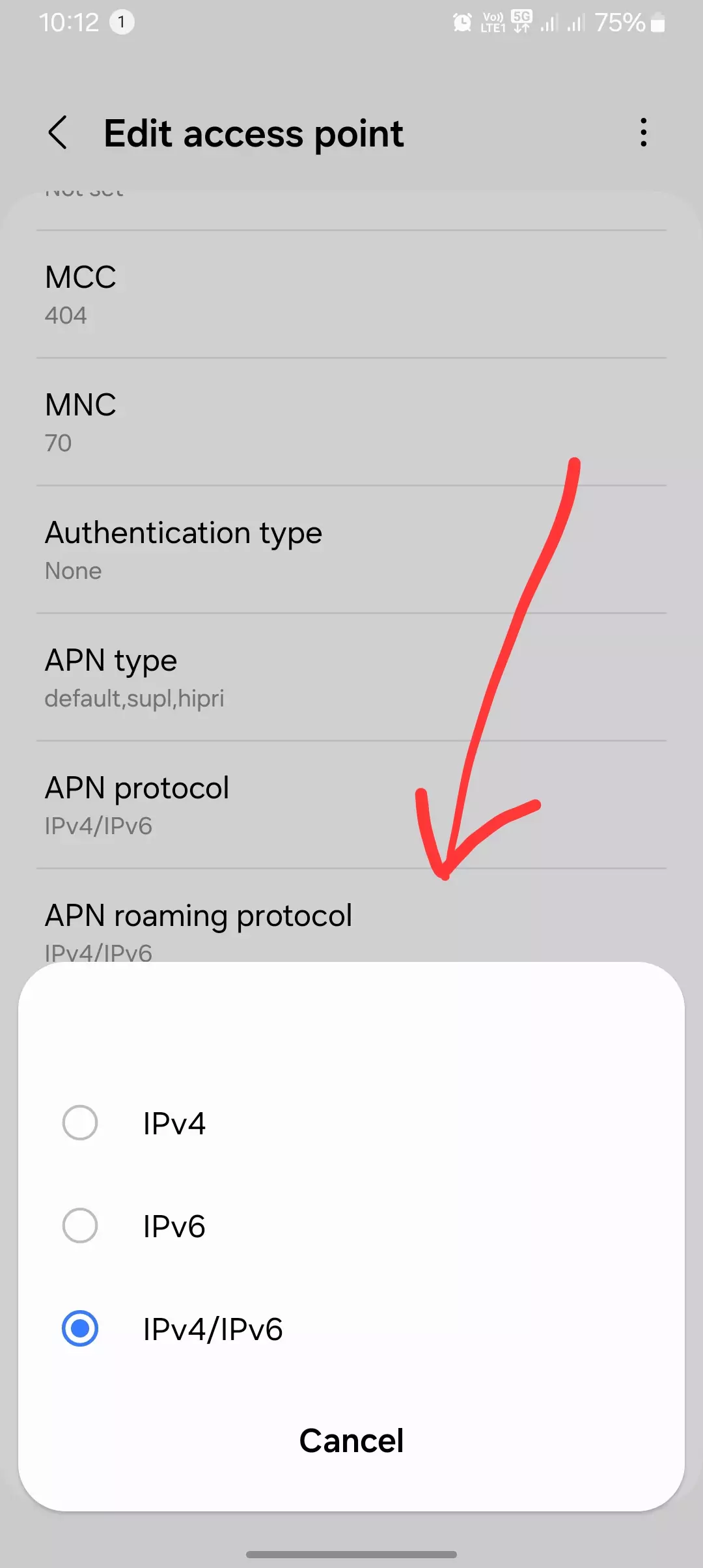

How to Check and Configure IPv4 or IPv6 in Your APN Settings

If you’re curious to see what your current APN settings are, here’s what I recommend:

1. Access APN settings: Go to your phone’s settings, usually under “Mobile Network” or “Cellular Data.”
2. Check protocol type: Look for options like IPv4, IPv6, or IPv4/IPv6.
3. Test different settings: Switch between protocols to see which provides the best performance for your network.

Conclusion

In my experience, IPv6 offers a clear edge over IPv4 in terms of speed and reliability, especially for modern applications and devices. While dual-stack configurations provide a great compromise, the future undoubtedly lies in widespread IPv6 adoption. If you’re looking to optimize your APN settings for the best internet speed, exploring IPv6 is a step in the right direction.
